residential · Prince George, BC
The Hot Tub GFCI That Kept Tripping — With No Ground Fault to Find

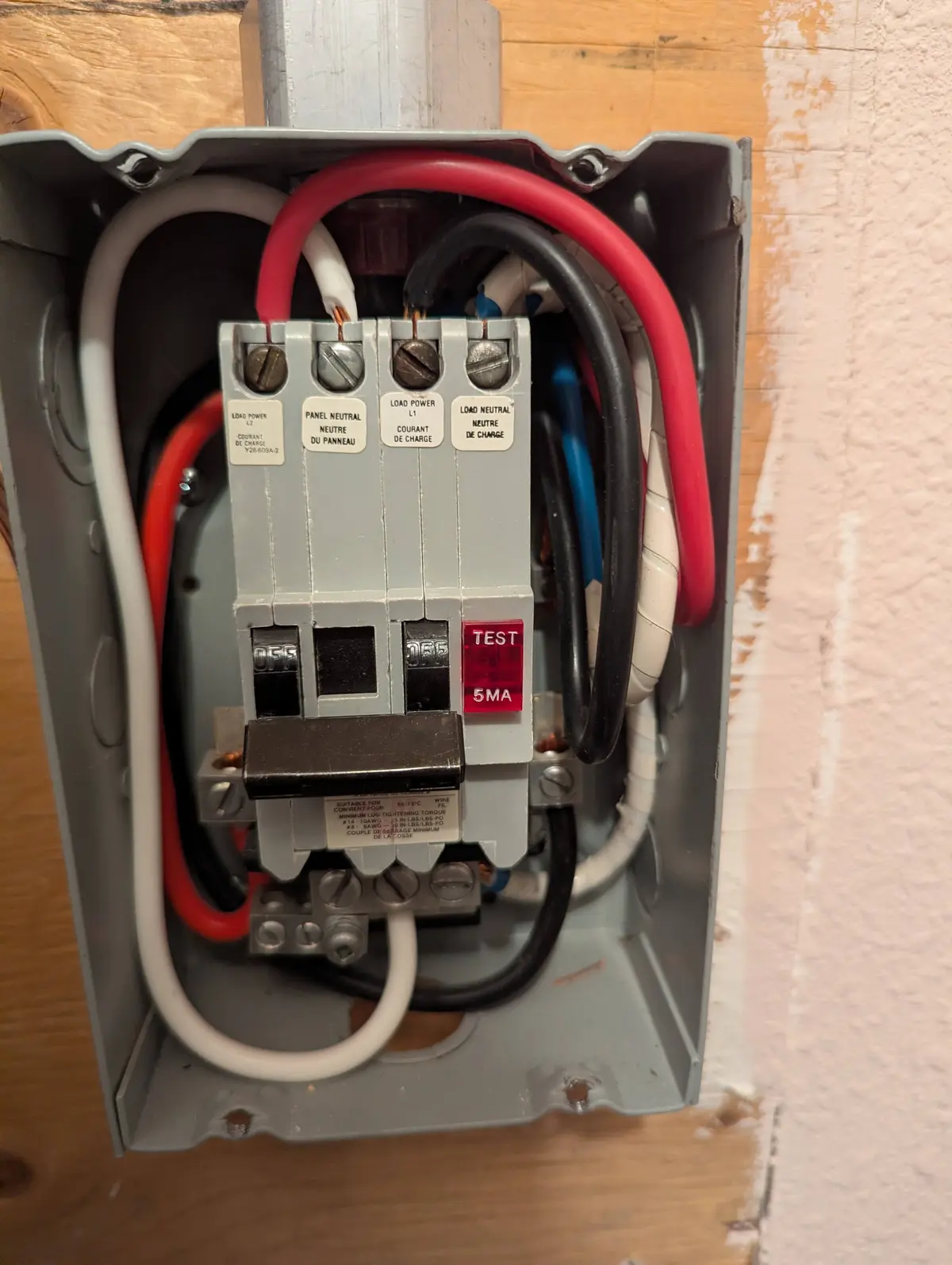

The call: a hot tub kept knocking out its GFCI. Not on startup, not when a specific pump kicked in — intermittently, with no pattern the owner could reproduce. The tub was a 2022 Arctic Spas Cub on a 230V, 40A circuit with the standard 2-pole 5 mA spa GFCI in the outdoor disconnect.
Ruling out the real suspects
A tripping spa GFCI usually has an honest reason, and the usual suspects are wet ones: a heater element with compromised insulation, a pump motor tracking to ground, moisture in a connection box. So the diagnosis worked through them properly:

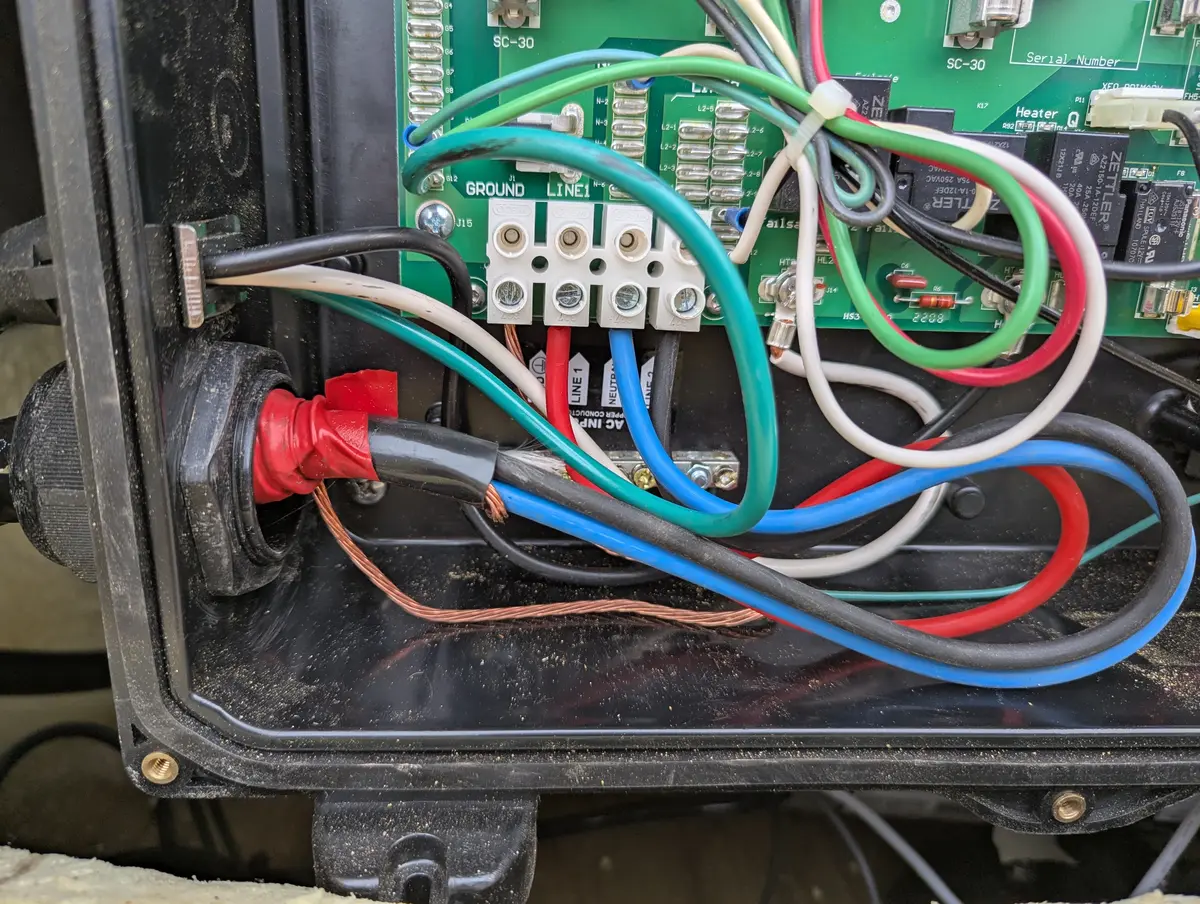

- Isolated and tested the loads at the spa pack — heater, pumps, blower circuits.
- Megger-tested the system — insulation resistance testing at voltages far above operating, the test that flushes out marginal insulation a multimeter can't see.
- Inspected the field wiring end to end for moisture ingress and damaged insulation.
Everything passed. No leakage path, no failing element, no wet connections. The system was clean.
When the protector is the problem
A GFCI breaker is a measuring instrument with a switch attached — it compares outgoing and returning current and trips at 5 mA of imbalance. Like any instrument, its electronics can drift and fail. But that diagnosis is only available after everything else is ruled out, because swapping the breaker first just masks a real fault — and on a hot tub, a masked ground fault is a safety problem, not an inconvenience.
With the system proven clean, the breaker was replaced as the last remaining suspect. The nuisance tripping stopped, and there have been no callbacks since.
The takeaway
"Replace the breaker" is sometimes the right answer — but only as the last step of a real diagnosis, never the first. If your spa GFCI trips, assume it's telling the truth until proven otherwise. The 5 mA threshold exists because that's the level that protects a person in the water.
Hot tub tripping its GFCI? MDN Electric does proper spa circuit diagnostics across Prince George. Book a visit.
Got a problem like this one?
This is what a proper diagnostic looks like: find the actual fault, fix it once, and leave you with straight answers. Based in Prince George, serving northern BC.
Book a diagnostic visit Call (778) 349-9654Common questions
Why does my hot tub GFCI keep tripping?
Usually for a real reason: a heater element with failing insulation, a pump leaking current, or moisture in a connection. Occasionally the GFCI itself has failed — but that diagnosis is only safe to make after everything else has been tested and ruled out.
Is it safe to reset a tripping hot tub breaker?
Resetting once is fine. If it trips repeatedly, stop resetting and get it diagnosed — a spa GFCI trips at the tiny current level that protects a person in the water, and repeated trips can mean electricity is leaking somewhere it shouldn’t.
What is a megger test?
An insulation resistance test that puts controlled high voltage across wiring and components to expose weakened insulation an ordinary meter can’t see. It’s the definitive way to prove a spa circuit is clean.
Can a GFCI breaker itself go bad?
Yes — a GFCI is a measuring instrument, and its electronics can drift or fail, causing nuisance trips with no real fault. Replacing it is the correct fix only once testing has proven the rest of the system clean.
